ättaGard Bollard

ättaGard Bollard

The ättaGard portable bollard sets up fast and gives real stopping power on its own. A single unit is engineered to PU30 P2 performance, and when three are connected with plates, the line reaches M30. It is protection you can move, deploy, and trust.

The ättaGard portable bollard is made for teams that need real crash-rated security they can move and set up without slowing down a site. A single unit is engineered to PU30 P2, so even on its own it delivers trusted stopping power. When three units are linked with connector plates, the line reaches M30, giving you the strength of a serious fixed system in a setup you can redeploy whenever plans change. It works clean, handles rough ground, and lets crews open or close access points in minutes. This is portable protection built for the real world, where sites shift, crowds move, and security needs to adapt fast while staying reliable.

Planning a rental? Use the ättaGard rental calculator for an instant estimate, then send it to our team for a formal quote.

ättaGard Bollard full specifications

Everything from the spec sheet, in one place. The PDF is still under Product Downloads if you need the drawings.

Crash rating
Rated to ASTM PU30, PU40, PU50
Breakout resistance (with damage) 574,482 J

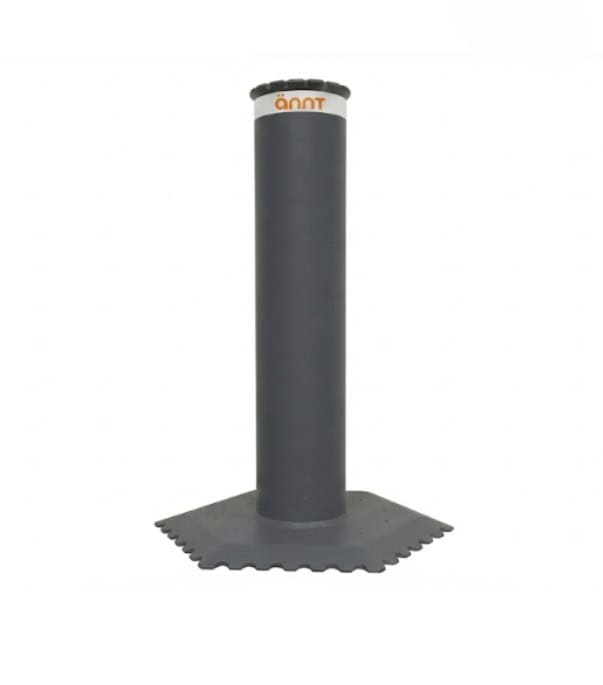

Bollard
Type Removable cylinder on a base plate
Height 1250 mm (49.2 in)
Cylinder diameter 273 mm (10.7 in)
Wall thickness 16 mm (0.6 in)
Base plate (W x H x D) 800 x 40 x 924 mm (31.5 x 1.6 x 36.4 in)
Material S355JR steel with concrete infill
Weight About 350 kg (772 lb)
Finish Standard paint, anthracite grey. Any RAL colour as an option.
Reflective strip 55 mm (2.2 in), included
Lifting Internal lift point for transport (remove the head first)
Layout
Arrangement Single units, in rows, offset or connected

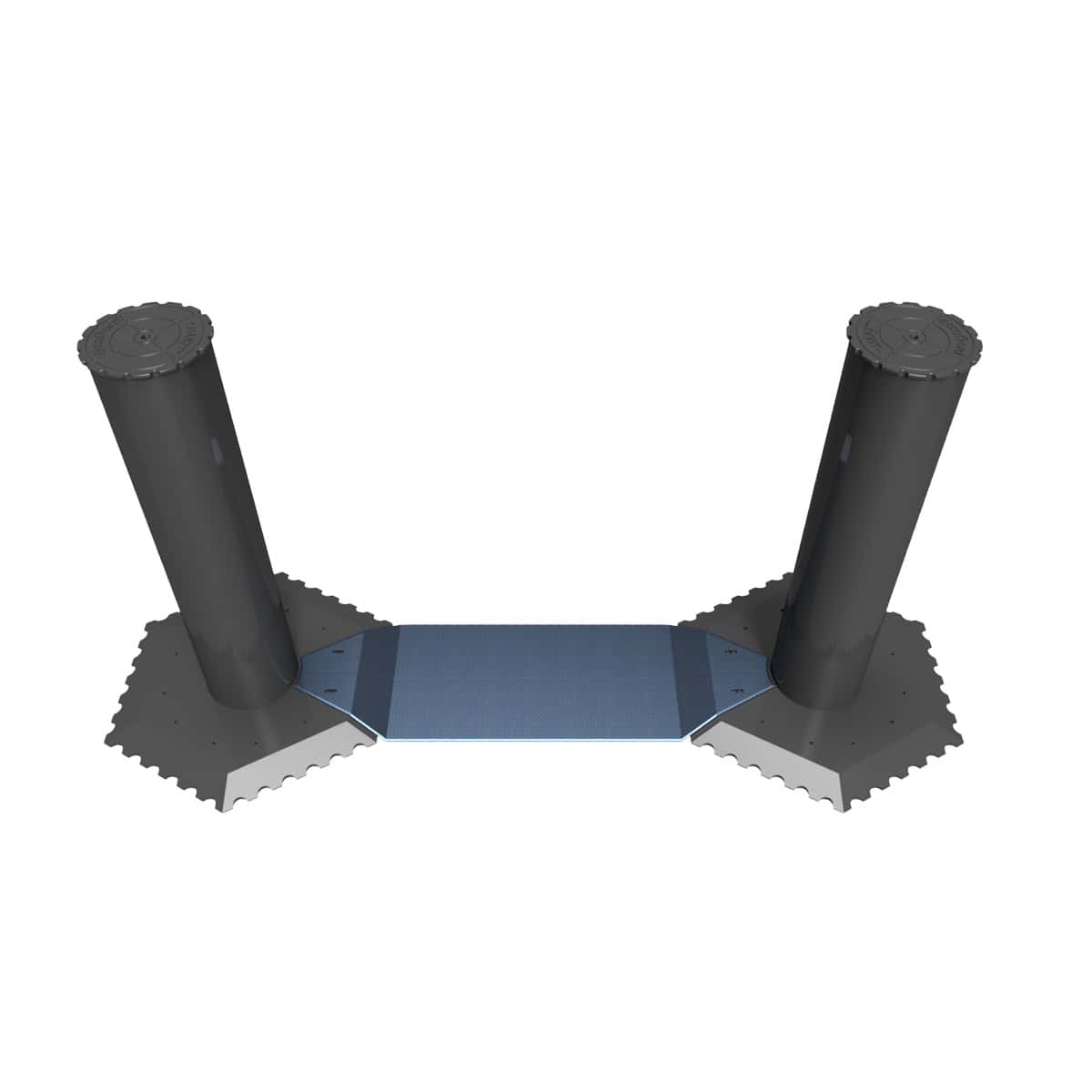

Connector plate 2520 mm (99.2 in) overall, 1720 mm (67.7 in) centre to centre, 1447 mm (57.0 in) clear between cylinders
Line width No limit, add units to cover any width
Narrow spaces One unit can secure narrow streets, sidewalks and bike paths
Emergency access Layouts can leave unobstructed escape routes and passage points for emergency vehicles (deflector or V-shaped sluice)

Need a drawing for your foundation design or help choosing the right model? Request information above and our team will send what your project needs.

Planning a festival, market or street event? See how ättaGard works as event security barriers.

Weight 400 kg
Dimensions 27.5 × 27.5 × 1250 cm
Finish

Powder Coated Anthracite Grey

Spec Sheet

  • 1. What makes ännt Bollards different from other perimeter protection manufacturers?

    Our certified products are backed by one of the most experienced teams in the industry — experts who ensure every solution is engineered, installed, and performing to the highest standard. We pride ourselves on having the best product and the best customer service in the industry.

  • 2. How do I know which bollard or barrier is right for my project?

    Our team provides tailored guidance for every application. We review your site conditions, access needs, and threat requirements to ensure the correct model, foundation type, and configuration are specified from the start.

  • 3. Are all ännt products certified or crash-rated? What’s the difference?

    Many of our systems are crash-rated to PAS 68, ASTM M-series, and IWA 14-1 standards. Non-rated models share the same engineering precision but are designed for light-duty or architectural applications where certification isn’t required.

  • 4. Can ännt Bollards work directly with my architect, contractor, or security consultant?

    Yes. Collaboration is at the heart of what we do. We frequently partner with design teams, contractors, and consultants to simplify coordination, maintain compliance, and ensure efficient installation.

  • 5. Do your systems meet international standards for crash testing and safety?

    Yes. ännt’s crash-rated products are independently tested and certified to meet recognized global standards, including PAS 68, ASTM M-series, and IWA 14-1 — ensuring proven performance and consistent results on projects worldwide.

  • 6. How do your bollards perform in harsh winter conditions?

    Our bollards are engineered to perform reliably in extreme climates. Heated components, sealed enclosures, and drainage systems prevent freezing, while corrosion-resistant materials ensure long-term durability through snow, salt, and ice.

  • 7. Can ännt customize bollard finishes, materials, or operation types for specific site requirements?

    Yes. We offer multiple finishes, materials, and operation types — including automatic, semi-automatic, and removable models — with options for lighting, access control, and aesthetic integration to suit any environment.

  • 8. How quickly can products be delivered or installed once a project is approved?

    Lead times vary by model and project size, but we maintain efficient production and logistics channels to support fast turnaround across North America, with installation guidance and support available where needed.
