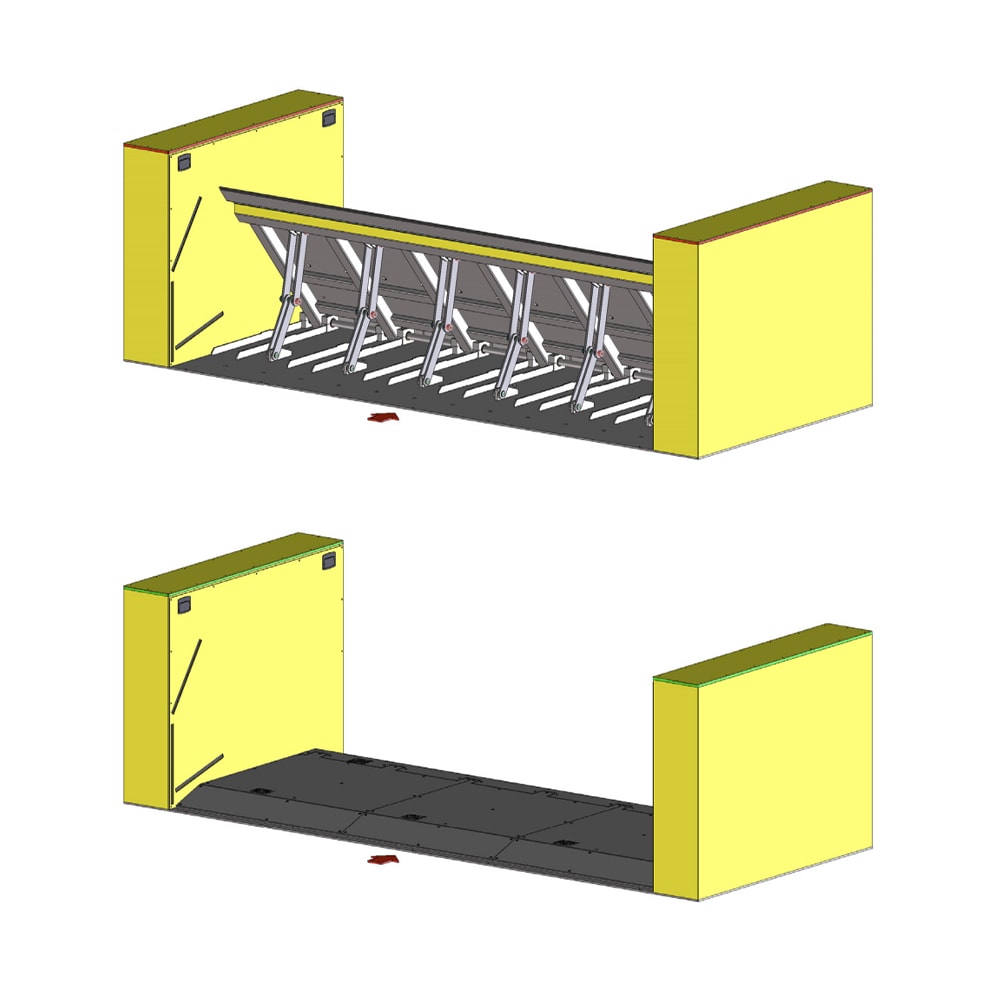

The ännt RBS1000K4 is a high-security surface-mounted road blocker designed for locations that require strong vehicle-mitigation performance but cannot accommodate traditional foundation work. Certified to ASTM M30/K4, the RBS1000K4 is engineered to stop a 15,000-lb vehicle traveling at 30 mph while sitting entirely above grade.
Because it does not require excavation, the RBS1000K4 is well suited for sites with underground utilities, hard surfaces or restricted construction zones. The system features a reinforced blocking element, a stable surface frame, and a dependable hydraulic operating unit designed for frequent use.
The automatic RBS1000K4 comes with a multi-beam infrared sensor, two-way warning lights and an acoustic warning signal, with alarm sensors available as an option. Its rugged design is rated for up to 2,000 cycles per day and works from -40°C to +70°C.
Overall, the ännt RBS1000K4 delivers certified crash performance in a fully surface-mounted package, giving planners a flexible and effective way to secure vulnerable access points without excavation.
RBS1000K4 full specifications
Everything from the spec sheet, in one place. The PDF is still under Product Downloads if you need the drawings.
| Crash rating | |
|---|---|
| Rated to | PAS 68 at 7,500 kg (16,535 lb), IWA 14-1 at 7,200 kg (15,873 lb) and ASTM M30 (K4) at 6,800 kg (14,991 lb), all at 50 km/h (31 mph) |
| Impact resistance (without damage) | 250,000 J |
| Breakout resistance (with damage) | 750,000 J, when fitted to solid ground such as concrete with the chemical anchors |
| Load rating (EN 124) | D400 |
| Platform | |
| Type | Surface mounted road blocker |
| Height above grade (raised) | 1000 mm (39.4 in) |
| Passage width | Up to 5.5 m (18.0 ft) |
| Platform lengths | 3500 mm, 4500 mm or 5500 mm (137.8 in, 177.2 in or 216.5 in) |
| Overall size (L x W x H) | 4200 x 1700 x 1300 mm, 5200 x 1700 x 1300 mm or 6200 x 1700 x 1300 mm (165.4 x 66.9 x 51.2 in, 204.7 x 66.9 x 51.2 in or 244.1 x 66.9 x 51.2 in) |
| Plate surface | Painted steel chequered sheet, or stainless steel chequered sheet as an option |
| Finish | Anti-corrosion treatment plus paint. Standard colour is anthracite grey, side posts painted yellow. |
| Reflective strip | 55 mm (2.2 in), included |
| Operation | |
| Drive | Hydraulic operator |
| Versions | Automatic, dead-man control or semi-automatic |
| Raise and lower speed | 14.2 cm/s (5.6 in/s), automatic and dead-man versions |
| Emergency fast raise (EFO option) | About 2 seconds, automatic version only. The EFO system needs regular maintenance. |
| Manual emergency lowering | Included on the automatic version |
| Manual operation | Manual operation device for power failures, or screw insert to raise or lower with a cordless screwdriver |
| Duty rating | Up to 2,000 cycles per day |
| Service life | About 3,000,000 cycles |
| Power and controls | |
| Control voltage | 230 V AC (+/- 10%), 50/60 Hz, automatic and dead-man versions |
| Safety sensor | Multi-beam infrared photocell, automatic version |
| Warning lights | Two-way warning light in both side housings. Green when lowered, flashing red while moving, steady red when raised. |
| Acoustic warning | Acoustic warning signal, automatic version |
| Backup power option | 3 kVA UPS keeps the road blocker running for up to 1 hour (about 10 cycles) |
| Foundation | |
| Installation | Surface mounted, no excavation. Fixed to solid ground such as concrete with chemical anchors. |
| Foundation details | Ask us for the installation drawing for your site. |
| Climate | |
| Operating temperature | -40°C to +70°C (-40°F to +158°F) |
| Cold weather | Heating element available, recommended for Canadian winters |
| Options | |
| Lighting | LED light strips (30 LEDs per metre) |
| Alarm sensors | Alerts for manual emergency lowering, control cover removal and ramp lowering |
| Anchoring | Chemical anchor set |
| Finish | Side housings or platform in any RAL colour |
| Hydraulics | Biodegradable hydraulic oil |
Need a drawing for your foundation design or help choosing the right model? Request information above and our team will send what your project needs.
