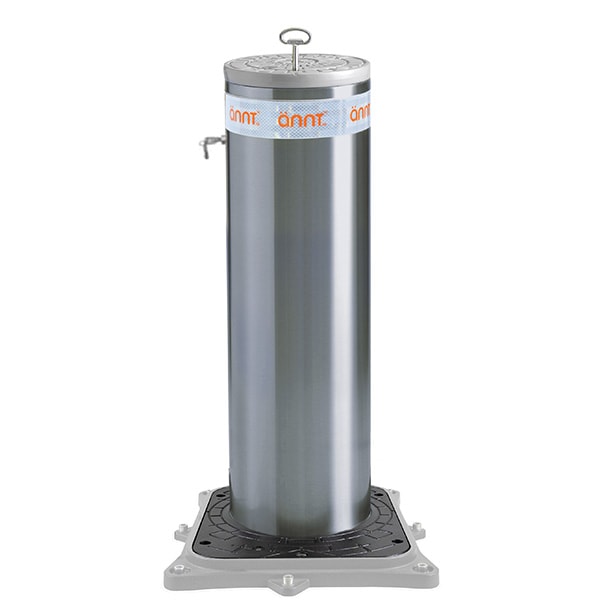

The ännt SA275-600 and SA275-800 are non-rated semi-automatic bollards built for locations that need dependable access control without high-impact crash protection. These models use an internal gas-spring mechanism that automatically lifts the bollard when unlocked, while lowering is done manually with a firm downward push. This makes them easy to operate while keeping installation and maintenance straightforward.
With reinforced steel cylinders, a sealed foundation box, and corrosion-resistant finishes, the SA275 series performs reliably in outdoor environments and in climates with temperature swings and moisture. Heights of 600 mm and 800 mm allow the system to match the needs of pedestrian zones, private lots, condominiums, commercial entrances, facility perimeters, and low-speed traffic control points.
These bollards integrate cleanly into ännt architectural layouts and pair well with fixed or removable bollards in matching styles. They’re ideal for sites where aesthetics matter, vehicle access is occasional, and operators want simple functionality without the cost or complexity of automation.
SA275-600/800 full specifications
Everything from the spec sheet, in one place. The PDF is still under Product Downloads if you need the drawings.
| Impact resistance | |
|---|---|
| Crash rating | Not crash rated |
| Impact resistance (no damage) | 30,000 J |
| Breakout resistance (with damage) | 250,000 J |
| Load rating (EN 124) | D400, drive-over rated when lowered |
| Cylinder | |
| Height above grade | 600 mm (23.6 in) or 800 mm (31.5 in) |
| Diameter | 273 mm (10.7 in) |
| Wall thickness | 6 mm (0.2 in) |
| Material | S235JR steel, or stainless steel AISI 304 |
| Finish | Steel: anti-corrosion treatment plus paint. Stainless: painted or brushed. Standard colour is anthracite grey, any RAL colour on request. |
| Reflective strip | 55 mm (2.2 in), included |
| Protection class | IP67 |
| Operation | |
| Drive | Integrated gas spring lifts the bollard |
| Raise speed | 20 cm/s (7.9 in/s) |
| Lowering | By hand, pushed down with your foot |
| Foundation | |
| Foundation box depth | 940 mm (37.0 in) for the 600 or 1140 mm (44.9 in) for the 800 |
| Top frame footprint | 560 x 560 mm (22.0 x 22.0 in) |
| Climate | |
| Operating temperature | -40°C to +70°C (-40°F to +158°F) |
| Cold weather | Heating element available |
| Options | |
| Lighting | LED light strips |
| Connecting lead | 10 m (32.8 ft) standard, up to 80 m (262.5 ft), or up to 50 m (164.0 ft) with a heating element |
Need help choosing between the 600 mm and 800 mm heights, or a drawing for your foundation design? Request information above and our team will send what your project needs.
