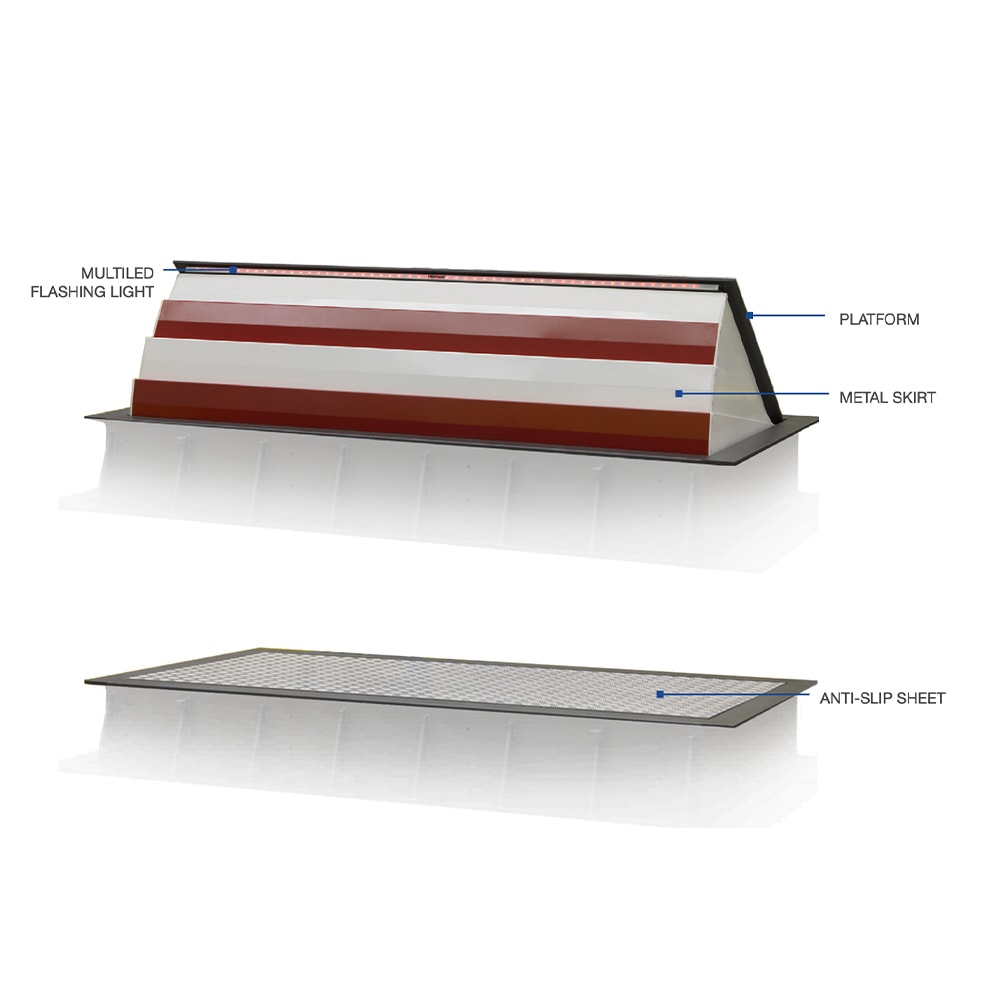

The ännt RB500K4 is a low-profile, shallow-mounted road blocker built for sites that need crash-rated vehicle protection without deep excavation. Rated to ASTM M30 (K4), the RB500K4 is engineered to stop a 15,000-lb vehicle traveling at 30 mph with a fitting depth of only 300 mm.
Its 300 mm fitting depth makes it suitable for passages up to 6 m wide and for locations where utilities, slabs or construction restrictions limit deep excavation. The reinforced blocking plate and stable surface frame deliver dependable impact resistance, and the hydraulic operating system provides consistent raising and lowering even under heavy use.
The RB500K4 supports LED light strips and an acoustic warning signal as options. Designed for tough environments, it works from -40°C to +70°C and gives planners a strong option when deep digging is not possible.
RB500K4 full specifications
Everything from the spec sheet, in one place. The PDF is still under Product Downloads if you need the drawings.
| Crash rating | |
|---|---|
| Rated to | ASTM M30 (K4), PAS 68, IWA 14-1 |
| Breakout resistance (with damage) | 750,000 J |
| Load rating (EN 124) | D400 |
| Platform | |
| Type | Shallow mounted road blocker |
| Height above grade (raised) | 500 mm (19.7 in) |
| Passage width | Up to 6 m (19.7 ft) |
| Standard lengths | 2 m, 3 m, 4 m, 5 m or 6 m (6.6 ft, 9.8 ft, 13.1 ft, 16.4 ft or 19.7 ft). The 6 m model is two connected modules. |
| Plate surface | Painted steel chequered sheet, or AISI 304 stainless steel chequered sheet as an option |
| Finish | Anti-corrosion treatment plus paint. Standard colour is anthracite grey. |
| Metal skirt | Front and sides, standard colour white and red |
| Reflective strip | 55 mm (2.2 in), included |
| Operation | |
| Drive | Hydraulic operator |
| Raise speed | 11.1 cm/s (4.4 in/s) for 2 m to 5 m lengths, 10 cm/s (3.9 in/s) for the 6 m length |
| Lower speed | 11.1 cm/s (4.4 in/s) |
| Emergency fast raise (EFO option) | About 1.5 seconds |
| Manual operation | Manual handling device for power failures, optional. Requires the base for the control housing. |
| Semi-automatic version | Available |
| Duty rating | Up to 2,000 cycles per day |
| Service life | About 3,000,000 cycles |
| Power and controls | |
| Control voltage | 230 V AC (+/- 10%), 50/60 Hz |
| Protection class | IP67 |
| Cable to control unit | 10 m (33 ft) standard, up to 30 m (98 ft) in 5 m (16 ft) steps, longer on request |
| Control housing | Painted standard, brushed AISI 304 stainless steel optional. Base for the housing in steel or stainless steel. |
| Backup power option | 3 kVA UPS keeps the road blocker running for up to 1 hour (about 10 cycles) |
| Power failure option | Normally open solenoid valve for automatic lowering |
| Foundation | |
| Fitting depth | 300 mm (11.8 in) |
| Foundation details | Ask us for the foundation drawing for your site. |
| Climate | |
| Operating temperature | -40°C to +70°C (-40°F to +158°F) |
| Cold weather | Heating element with transformer and thermostat available, recommended for Canadian winters |
| Corrosion | Marine treatment for salt and coastal sites |
| Options | |
| Lighting and signals | LED light strips (30 LEDs per metre), acoustic warning signal |
| Finish | Metal skirt or control housing in any RAL colour |
| Security | Lock against hydraulic line sabotage, double security lock for the control housing |
| Control housing | Air conditioner, 230 V 500 W |
| Hydraulics | Biodegradable oil in the hydraulic pump |
Need a drawing for your foundation design or help choosing the right model? Request information above and our team will send what your project needs.
